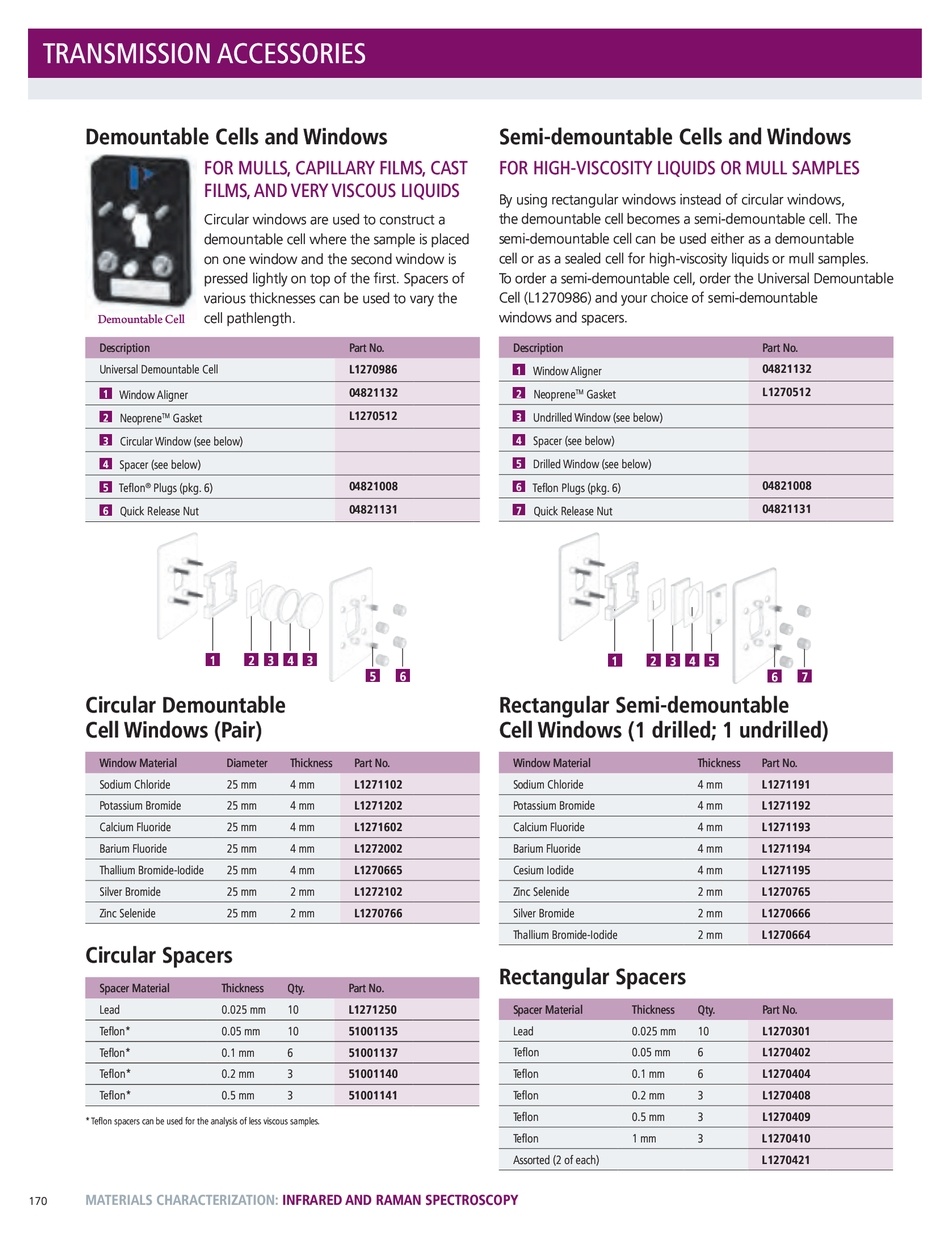

170 Materials characterization: inFrareD anD raMan sPectroscoPY Demountable Cell 1 2 3 4 5 7 6 1 2 3 4 3 6 5 Demountable cells and Windows FOR MullS, CApIllARy FIlMS, CAST FIlMS, ANd VERy VISCOuS lIquIdS Circular windows are used to construct a demountable cell where the sample is placed on one window and the second window is pressed lightly on top of the first.
Spacers of various thicknesses can be used to vary the cell pathlength.
description part No.
Universal Demountable Cell l1270986 1 Window Aligner 04821132 2 NeopreneTM Gasket l1270512 3 Circular Window (see below) 4 Spacer (see below) 5 Teflon® Plugs (pkg.
6) 04821008 6 Quick Release Nut 04821131 semi-demountable cells and Windows FOR HIgH-VISCOSITy lIquIdS OR Mull SAMplES By using rectangular windows instead of circular windows, the demountable cell becomes a semi-demountable cell.
The semi-demountable cell can be used either as a demountable cell or as a sealed cell for high-viscosity liquids or mull samples.
To order a semi-demountable cell, order the Universal Demountable Cell (L1270986) and your choice of semi-demountable windows and spacers.
description part No.
1 Window Aligner 04821132 2 NeopreneTM Gasket l1270512 3 Undrilled Window (see below) 4 Spacer (see below) 5 Drilled Window (see below) 6 Teflon Plugs (pkg.
6) 04821008 7 Quick Release Nut 04821131 circular Demountable cell Windows (Pair) Window Material diameter Thickness part No.
Sodium Chloride 25 mm 4 mm l1271102 Potassium Bromide 25 mm 4 mm l1271202 Calcium Fluoride 25 mm 4 mm l1271602 Barium Fluoride 25 mm 4 mm l1272002 Thallium Bromide-Iodide 25 mm 4 mm l1270665 Silver Bromide 25 mm 2 mm l1272102 Zinc Selenide 25 mm 2 mm l1270766 circular spacers Spacer Material Thickness qty.
part No.
Lead 0.025 mm 10 l1271250 Teflon* 0.05 mm 10 51001135 Teflon* 0.1 mm 6 51001137 Teflon* 0.2 mm 3 51001140 Teflon* 0.5 mm 3 51001141 * Teflon spacers can be used for the analysis of less viscous samples.
rectangular semi-demountable cell Windows (1 drilled 1 undrilled) Window Material Thickness part No.
Sodium Chloride 4 mm l1271191 Potassium Bromide 4 mm l1271192 Calcium Fluoride 4 mm l1271193 Barium Fluoride 4 mm l1271194 Cesium Iodide 4 mm l1271195 Zinc Selenide 2 mm l1270765 Silver Bromide 2 mm l1270666 Thallium Bromide-Iodide 2 mm l1270664 rectangular spacers Spacer Material Thickness qty.
part No.
Lead 0.025 mm 10 l1270301 Teflon 0.05 mm 6 l1270402 Teflon 0.1 mm 6 l1270404 Teflon 0.2 mm 3 l1270408 Teflon 0.5 mm 3 l1270409 Teflon 1 mm 3 l1270410 Assorted (2 of each) l1270421
